1.Furnace door: automatic ring locking
2.Furnace shell: all carbon steel with inner stainless steel
3.Furnace tank: fully rigid composite felt
4.Heater material: isostatic pressed graphite / molded three-high graphite
5.Muffle material: isostatic pressed graphiteStandard model
| Model | PJ-SJ336 | PJ-SJ447 | PJ-SJ449 | PJ-SJ4411 | PJ-SJ5518 |
| Effective Hot Zone LWH (mm) | 300*300* 600 | 400*400* 700 | 400*400* 900 | 400*400* 1100 | 500*500* 1800 |
| Load Weight(kg) | 120 | 200 | 300 | 400 | 800 |
| Maximum Temperature(℃) | 1600 | ||||
| Temperature control accuracy(℃) | ±1 | ||||
| Furnace temperature uniformity(℃) | ±5 | ||||
| Work Vacuum Degree(Pa) | 4.0 * E -1 | ||||
| Pressure raise rate (Pa/H) | ≤ 0.5 | ||||
| Debinding rate | ＞97.5% | ||||
| Debinding method | N2 in negative pressure，H2 in atmosphere | ||||
| Input gas | N2，Ar | ||||
| Hot presuure (Bar) | 10~120 | ||||
| Cooling method | Vacuum cooling，Pressure cooling,Forced pressure cooling | ||||
| Sintering method | Vacuum sintering，partial pressure sintering，pressureless sintering | ||||
| Furnace structure | Horizontal, single chamber | ||||
| Furnace door opening method | Hinge type | ||||
| Heating elements | Graphit heating elements | ||||
| Heating chamber | Composition structure of Graphit hard felt and soft felt | ||||
| Thermocouple | C Type | ||||

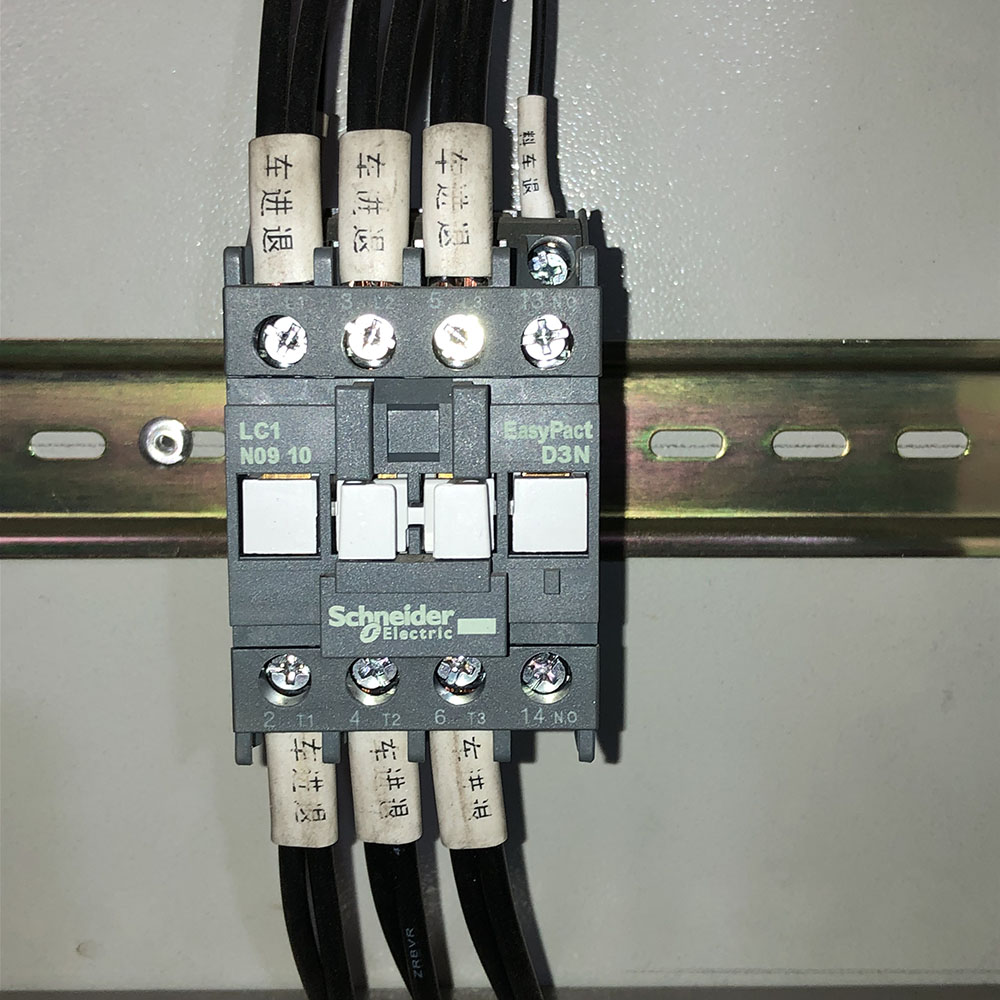

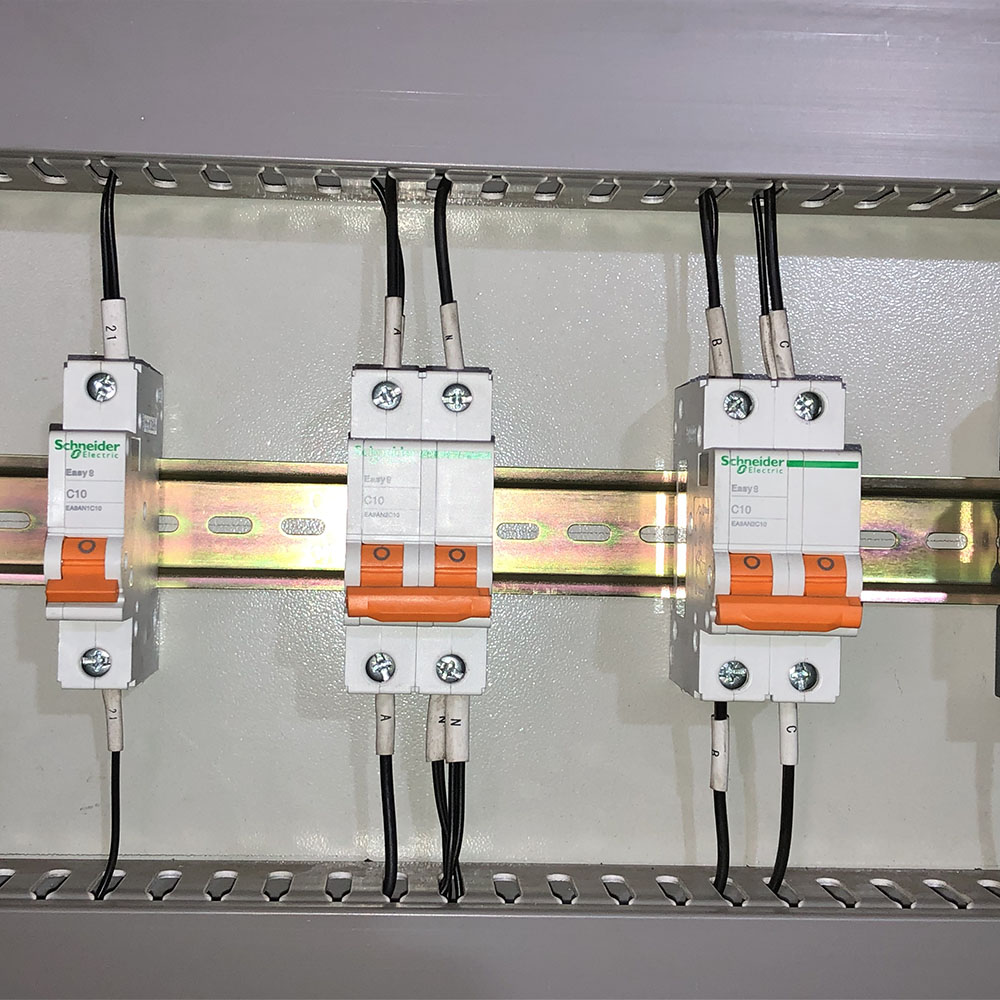

| PLC & Electric elements | Siemens | ||||

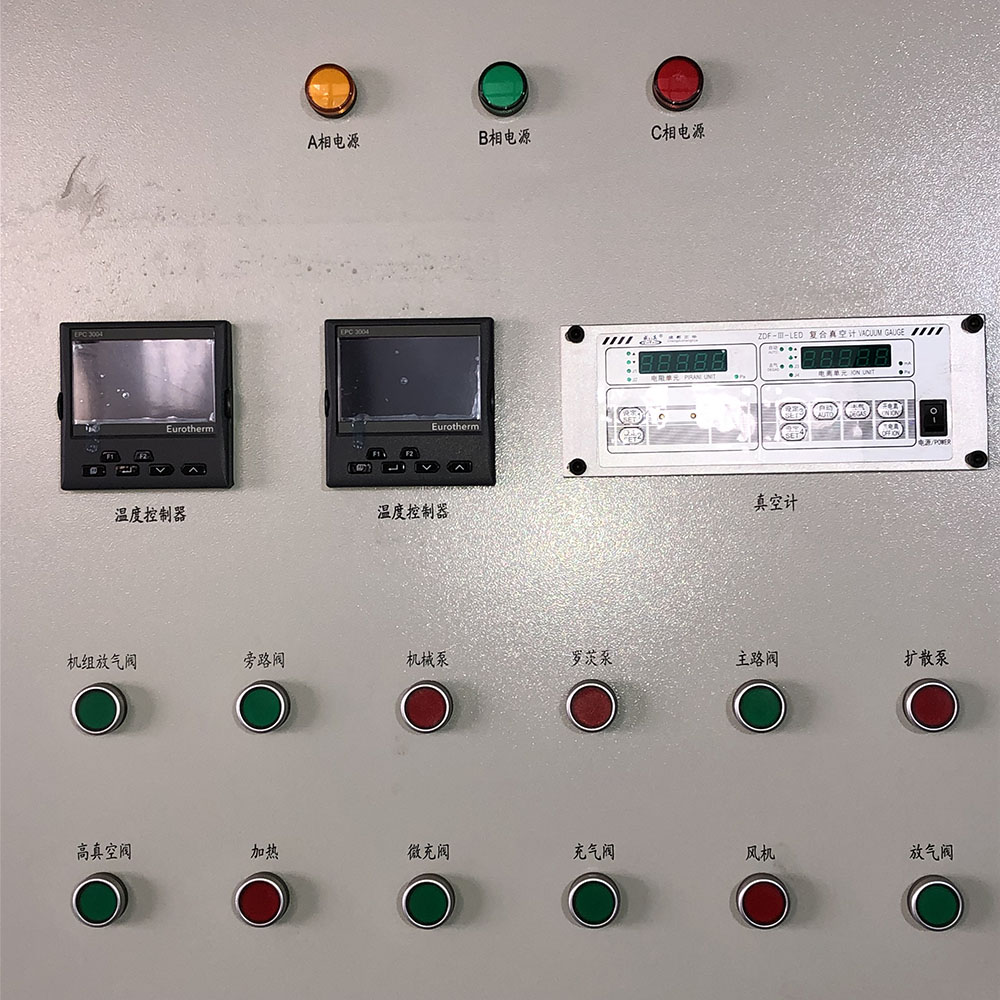

| Temperature controller | EUROTHERM | ||||
| Vacuum pump | Mechanical pump and roots pump | ||||
| Customized optional ranges |
|||||
| Maximum temperature | 1300-2800 ℃ | ||||
| Maximum temperature degree | 6.7 * E -3 Pa | ||||
| Furnace structure | Horizontal,Vertical, single chamber | ||||
| Door opening method | Hinge type, Lifting type,Flat type | ||||
| Heating elements | Graphit heating elements, Mo heating elements | ||||
| Heating chamber | Composed Graphit felt, All metal reflecting screen | ||||
| Vacuum pumps | Mechanical pump and roots pump; Mechanical, roots and diffusion pumps | ||||
| PLC & Electric elements | Siemens;Omron;Mitsubishi;Siemens | ||||
| Temperature controller | EUROTHERM;SHIMADEN | ||||
